All the replacement shaker screens are API RP 13C compliant
We declare that we only produce the replacement screens but not original ones Brandt is mark of NOV Brandt .
DESIGNED FOR THE BRANDT SHALE SHAKERS
Material: Stainless Steel 304/316/316L
Frame Material: Q235 Steel & Composite
Standard: API RP 13C
API Range: 20-325 Mesh
Mesh shape: RHD; XF; MG; XL Etc.
|
Replacement Shaker Screens |
For Shale Shaker |
Dimension (MM) |
Weight (KGS) |
|
Brandt King Cobra/Venom/Hybrid/ Mini Cobra/LCM - 3D Steel Frame |
Brandt King Cobra/Hybrid Shale Shaker |
1250mm*635mm |
13.5 KGS |
|
Brandt King Cobra/Venom/Hybrid/ Mini Cobra/LCM - 3D Composite |
15.5 KGS |
||
|
Brandt King Cobra/Venom/Hybrid/ Mini Cobra/LCM - 3D Steel Frame PWD |
17 KGS |
||
|

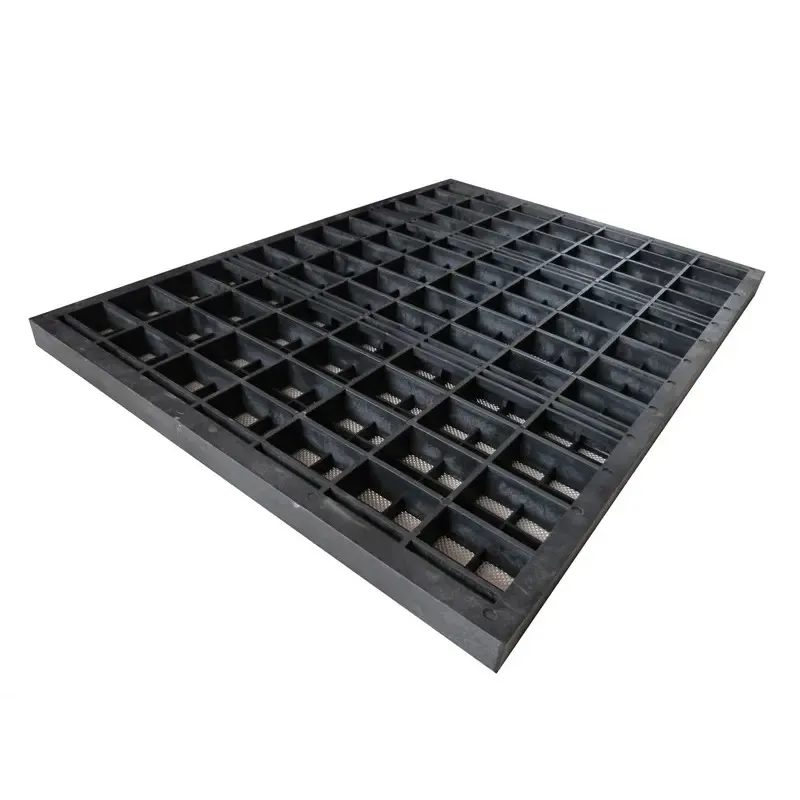

Brandt VSM 300 Scalping Steel Frame |
Brandt VSM 300 Scalping Shale Shaker/Mud Cleaner |
935mm*675mm |
10.5 KGS |
|
Brandt VSM 300 Scalping Composite |
13.5 KGS |
||
|
Brandt VSM 300 Primary Steel Frame |
Brandt VSM 300 Primary Shale Shaker/Mud Cleaner |
889mm*686mm |
11 KGS |
|
Brandt VSM 300 Primary Composite |
9 KGS |
||
|
Brandt VSM 300 Secondary Steel Frame |
Brandt VSM 300 Secondary Shale Shaker/Mud Cleaner |
686mm*208mm |
5 KGS |
|
Brandt 4' * 5' Soft Screen |
Brandt 4' * 5'/B40 Shale Shaker |
1220mm*1524mm |
4 KGS |
|
Brandt BLT - 50/LCM - 2D Flat Screen |
Brandt BLT - 50/LCM - 2D Shale Shaker |
1150mm*915mm |
7.5 KGS |
|
Brandt VSM Multi Sizer Scalping |
Brandt VSM Multi Sizer Scalping Shale Shaker |
935mm*675mm |
9 KGS |
|
Brandt VSM Multi Sizer Primary |
Brandt VSM Multi Sizer Primary Shale Shaker |
935mm*680mm |
8 KGS |
|
Brandt VSM 100 Steel Frame |
VSM 100 Shale Shaker |
910mm*650mm |
10 KGS |
Why Choose Our BRANDT REPLACEMENT SHALE SHAKER SCREENS?
Superior Quality: Manufactured using high-grade stainless steel and advanced composite materials, our screens are built to withstand the harshest drilling conditions, ensuring reliable performance and extended service life.
Precision Engineering: Each screen is meticulously crafted to ensure a perfect fit, optimal fluid flow, and efficient solids removal, guaranteeing seamless compatibility with your BRANDT shaker.
Enhanced Durability: Our screens are engineered to resist corrosion, abrasion, and fatigue, significantly reducing replacement frequency and lowering operational costs.
Improved Filtration Efficiency: The optimized mesh design ensures maximum solids removal while maintaining excellent fluid throughput, resulting in cleaner drilling fluid and improved drilling performance.
Cost-Effective Solution: We offer competitive pricing without compromising on quality, providing a cost-efficient alternative to OEM screens.
