In the solid control system of oil and gas drilling operations, Derrick shale shaker has become a key equipment in the drilling fluid purification process due to its unique structural design and separation efficiency. It achieves efficient particle size separation between drilling cuttings and drilling fluid through the synergistic effect of precise mechanical vibration and gravity assisted drainage. Its performance is directly related to the recycling rate of drilling fluid and the control of operating costs.
The core advantage of Derrick shale shaker lies in the dual guarantee of separation accuracy and structural stability

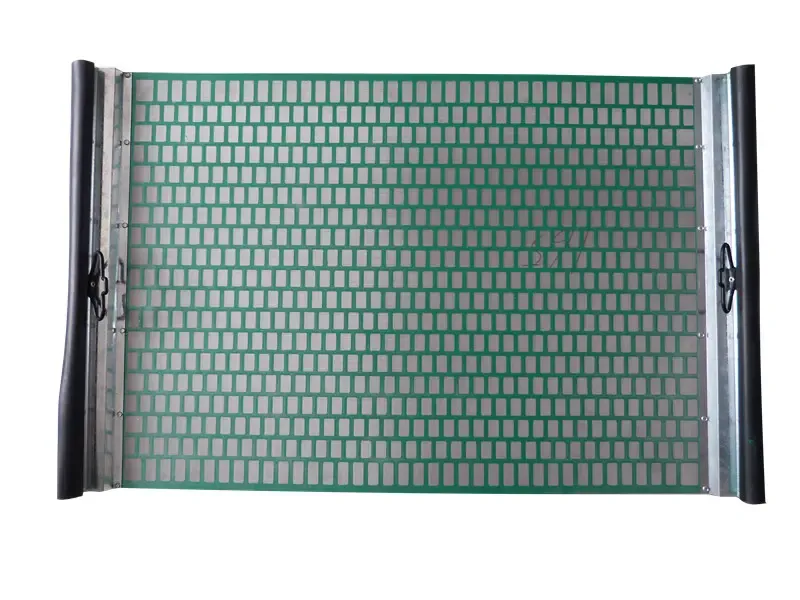

The main body of Derrick Shaker Screen is constructed with high-strength alloy steel, which has undergone overall welding process treatment and can withstand continuous vibration loads and complex working conditions on drilling sites. It is not easy to deform during long-term operation. The vibration system adopts a synchronous excitation device driven by dual motors, which can adapt to the separation requirements of different particle sizes of drill cuttings by adjusting the vibration frequency (usually in the range of 50-60Hz) and amplitude (3-6mm) - high-frequency vibration is used for fine particle drill cuttings separation to enhance the stripping efficiency of drill cuttings and drilling fluid; During coarse particle processing, the amplitude is optimized to ensure rapid migration of drill cuttings on the screen surface. The screen adopts a patented layered design, with the upper layer being a fine filter to intercept small particles, and the lower layer being a support mesh to enhance overall strength. The sealing structure at the edge of the filter prevents lateral leakage of drilling fluid and improves separation efficiency.
The working principle of Derrick shale shaker strictly follows the collaborative mechanism of mechanical vibration and gravity assisted drainage
When the drilling fluid containing drill cuttings enters the feed distributor, it is evenly distributed on the surface of the sieve through the guide plate. Under the directional vibration generated by the excitation device, the drilling fluid flows forward in a wave like manner along the screen surface. The liquid seeps into the lower collection tank through the pores of the screen under the action of gravity, completing preliminary purification; Under the dual action of vibration thrust and its own gravity, the drill cuttings move along the inclined angle of the screen surface (usually 3-5 °) towards the chip discharge end. Different particle sizes of drill cuttings achieve graded separation due to differences in vibration response, with larger particles being discharged first and smaller particles further separated from the liquid during continuous vibration. This continuous separation process does not require additional auxiliary power, and a single device can process 80-120 cubic meters of drilling fluid per hour, meeting the needs of medium and large-scale drilling operations.
In practical applications, Derrick shale shaker demonstrates significant advantages in scene adaptation
Derrick shaker screens can be used as the first equipment in the solid control system for conventional drilling on land, removing drilling cuttings with a diameter greater than 74 μ m and reducing the load on subsequent equipment; During shale gas horizontal well operations, heating devices and anti clogging screens are installed to ensure stable separation efficiency based on the characteristics of high viscosity drilling fluids; Due to space limitations, offshore drilling platforms adopt compact models with foldable screen designs to maintain efficient separation performance in limited spaces; In environmentally sensitive areas, enclosed debris discharge channels can reduce the volatilization of drilling fluid and the scattering of drilling debris, thereby reducing the impact on the surrounding environment.
With the upgrading of drilling technology, Derrick shale shaker's innovation continues to deepen
In terms of energy conservation, the rock shaker screen uses permanent magnet synchronous motors instead of traditional asynchronous motors, reducing energy consumption by 15% -20%; The intelligent improvement is reflected in the installation of online monitoring modules, real-time collection of screen load and vibration parameters, automatic adjustment of vibration frequency through the control system, and optimization of separation effect; The structure adopts a quick detachable screen design, which shortens the replacement time to less than 5 minutes and greatly improves maintenance efficiency; The application of the new wear-resistant coating extends the service life of the screen mesh by more than 30% and reduces the cost of consumable replacement.
In summary, Shaker Screen focuses on the collaborative technology of mechanical vibration and gravity separation, and has constructed an efficient drilling fluid purification solution through structural optimization and functional innovation. It not only improves the recycling efficiency of drilling fluid and reduces operating costs, but also demonstrates significant advantages in environmental performance. In the future, with the advancement of intelligent and green drilling concepts, it will continue to break through in separation accuracy, energy consumption control, and environmental adaptability, providing strong support for the sustainable development of the drilling industry.
Derrick Shale Shaker FAQs
What is the working principle of Derrick Shale Shaker?
Derrick Shale Shaker utilizes high-frequency mechanical vibration and gravity assisted drainage to achieve solid-liquid separation. Solid particles in drilling fluid are subjected to vibration force on the vibrating screen surface. Smaller particles and liquids are discharged through the screen, while larger particles are trapped on the screen surface, thus achieving separation of different particle sizes. The excitation force generated by the vibration motor causes the sieve to move back and forth, while gravity helps the liquid to be discharged faster, improving separation efficiency.
What are the core components of Derrick Shale Shaker?
The core components of the device include a vibration motor, screen frame, screen, base, and shock-absorbing spring. The vibration motor provides high-frequency vibration force, and the screen frame supports the screen and transmits vibration. The screen is selected with different mesh sizes according to separation requirements, and the base and shock-absorbing spring are used to stabilize the equipment and reduce vibration transmission to external structures.
What working conditions is Derrick Shale Shaker suitable for?
This type of vibrating screen is widely used in fields such as petroleum drilling, mining tailings treatment, and construction mud dewatering. It can efficiently process high viscosity and high solid content mud, adapt to harsh working environments, and perform exceptionally well in scenarios that require rapid separation of solid-liquid mixtures.
How to choose the mesh size of Derrick Shale Shaker sieve?
The choice of mesh size for the sieve depends on the size of the solid particles that need to be separated. The higher the mesh size, the smaller the sieve aperture, which is suitable for separating small particles; The lower the mesh size, the larger the sieve aperture, making it suitable for handling larger particles. The sieve size is usually determined based on the solid particle size distribution, processing capacity, and separation requirements of drilling fluid or mud.
What aspects should Derrick Shale Shaker pay attention to during maintenance?
Regularly check the wear of the screen mesh and replace damaged or blocked screens in a timely manner to ensure separation efficiency. Clean the accumulated mud on the screen frame and base to prevent excessive equipment load. Lubricate the bearings of the vibration motor and check whether the shock absorber spring is aging or deformed. Keeping the equipment clean and avoiding long-term overload operation can significantly extend its service life.
