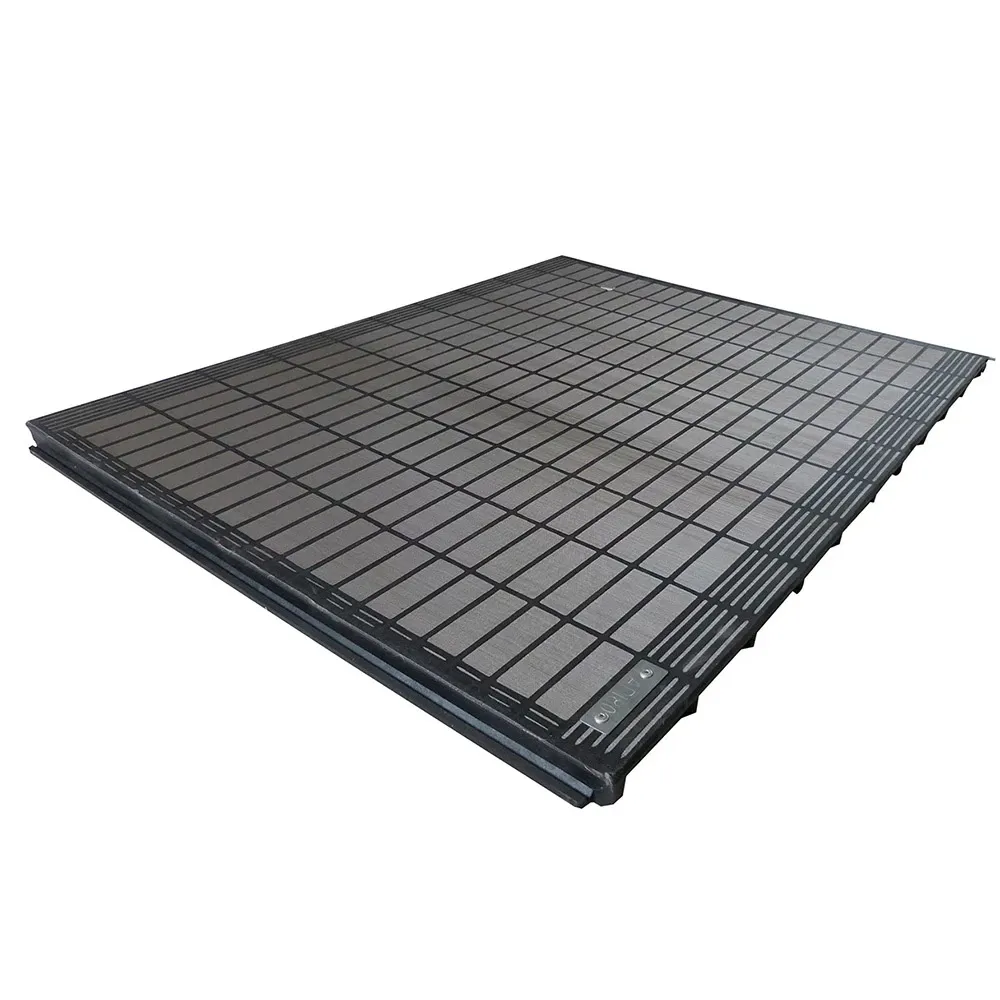

In the solid phase control process of drilling fluid, SWACO Screens have become the core component for maintaining stable drilling fluid performance due to their excellent durability and precise filtration performance. It breaks through the limitations of ordinary screen mesh in complex working conditions, such as easy wear and low filtration efficiency. Through material reinforcement and structural optimization, it can withstand the continuous erosion of drilling fluid and the friction of solid particles, and efficiently separate solid particles of different sizes. Its performance is directly related to the continuity of drilling operations and the recycling rate of drilling fluid.
The durability of SWACO Screens comes from special material selection and processing techniques
High tension stainless steel wire or composite polyester fiber is used at the grassroots level. The stainless steel wire in the mongoose shaker screens is strengthened by cold drawing treatment, and its tensile strength is increased by more than 30% compared to ordinary steel wire, which can resist the impact force generated by high-speed flow of drilling fluid; Composite polyester fiber is added with anti ultraviolet and anti-aging components to adapt to the complex climate environment of outdoor drilling. The surface adopts multi-layer weaving technology to form a staggered and dense mesh structure, and the key stress areas are reinforced with double line weaving to reduce the deformation of the mesh caused by local wear. The high-strength aluminum alloy frame is wrapped around the edges, and the connection between the frame and the mesh adopts an embedded design to avoid edge cracking caused by traditional riveting methods. The overall structure can withstand long-term high-frequency vibration without loosening.
The core of SWACO Screens' filtering performance lies in the combination of mesh design and weaving accuracy
The mesh size of swaco shaker screens is accurately divided according to drilling requirements, ranging from 20 mesh to 325 mesh. The mesh deviation of the same batch of screens is controlled within a very small range to ensure uniform particle size of the separated solid particles. By using gradient weaving technology, the mesh surface presents a gradually decreasing pore size distribution from the inlet to the outlet, allowing solid particles in the drilling fluid to be separated by particle size classification, avoiding large particles directly impacting the fine mesh holes and causing blockage. The surface of the mesh is treated with a special coating to form a smooth hydrophobic layer, which makes it difficult for drilling fluid to stagnate when flowing on the mesh, reducing the chance of solid particles adhering and maintaining sustained and stable filtration efficiency.
The key to measuring the quality of SWACO Screens lies in the balance between durability and filtration performance
The wear resistance of the material needs to adapt to the long-term erosion of high solid drilling fluid, and the service life is extended by more than 50% compared to ordinary screen mesh; The stability of the mesh requires that the aperture change should not exceed 3% under a tension of 100kN/m ², ensuring consistent filtration accuracy; Chemical corrosion resistance requires tolerance to various additives in drilling fluids, including salts, polymers, and lubricants, and long-term contact without material degradation; The bonding strength between the frame and the mesh should ensure that there is no relative displacement or separation phenomenon under the vibration frequency of 20-50Hz.
In practical applications, SWACO Screens have a wide range of scene adaptability
When drilling deep wells on land, high tension stainless steel mesh can maintain stable filtration and reduce replacement frequency in the face of high viscosity drilling fluid and large particle size rock debris; Due to limited space, the long-term durability of offshore drilling platforms can reduce the frequency of screen replacement and save operation time; In shale gas drilling, SWACO Screens with fine mesh can effectively intercept nanoscale drilling fluid additives and prevent their loss with solid particles; In areas with high environmental requirements, precise filtration performance can reduce the discharge of drilling fluid waste and lower processing costs.
With the development of drilling technology, the innovation of SWACO Screens continues to deepen
In terms of material, we have developed a titanium alloy composite mesh surface that reduces weight while maintaining high strength, making it easy to install and transport; The structure adopts modular design, and the mesh and frame can be replaced separately to reduce maintenance costs; The surface coating has been upgraded to a self-cleaning material, which reduces the adhesion of solid particles through biomimetic technology and further extends the cleaning cycle; In addition, specialized screening screens with better temperature resistance have been developed for extreme high or low temperature drilling environments, expanding their application scope.
In summary, SWACO Screens focuses on the synergy between durability and filtration performance, and has developed a filtration solution that adapts to complex drilling conditions through material reinforcement, structural optimization, and process innovation. It not only ensures the stability of drilling fluid performance, but also reduces the overall cost of drilling operations by extending its service life and improving filtration efficiency. In the future, with the diversified development of drilling conditions, SWACO Screens will continue to break through in material innovation and structural design, providing more reliable support for solid phase control of drilling fluids.
SWACO Screens FAQs
How durable are SWACO Screens?
SWACO Screens are made of high-strength alloy steel or polyurethane material, which has excellent wear and fatigue resistance. Its structure has been optimized and designed to withstand long-term high-frequency vibrations and harsh working conditions, significantly extending its service life. The surface of the screen mesh has undergone special treatment to effectively prevent corrosive substances in the drilling fluid from corroding, making it suitable for continuous operation in high temperature and high corrosion environments.
What level of filtering accuracy can SWACO Screens achieve?
According to different working conditions, SWACO Screens offers multiple mesh options (such as 20 mesh to 200 mesh), which can accurately separate solid particles in drilling fluid. The multi-layer stacked pressure design further improves the filtration efficiency, intercepting impurities with a minimum particle size of 75 microns, ensuring liquid phase cleanliness, and reducing the loss of useful drilling fluid.
How to determine if SWACO Screens need to be replaced?
When the screen mesh shows obvious deformation, holes, or edge cracks, it needs to be replaced immediately. If a decrease in filtration speed, an abnormal increase in sand return, or an imbalance in screen box vibration is found during homework, it may be caused by screen wear. Regularly check the tension and surface wear marks of the screen mesh, and it is recommended to perform preventive maintenance every 300-500 hours.
Can SWACO Screens adapt to the filtration of high viscosity mud?
For high viscosity mud, SWACO Screens adopts a large aperture design and anti clogging coating to effectively reduce the risk of clogging. Some models are equipped with self-cleaning structures that optimize vibration acceleration to quickly peel off adhered mud and maintain stable throughput. Suggest pairing with a high-pressure flushing system to further improve processing efficiency.
How does SWACO Screens perform in the separation of extremely fine particles?
For extremely fine particles such as shale debris, SWACO's high mesh three-layer composite screen can achieve stepped filtration. The upper coarse sieve pre separates large particles, the middle layer intercepts medium-sized particles, and the lower fine sieve captures micron sized particles. This structure balances processing capacity and accuracy, with a fine particle retention rate of over 90%, significantly reducing the load on subsequent solid control equipment.
