Shale shaker screen panel configurations

Shale shaker screen panel configurations are a critical determinant of drilling fluid filtration efficiency in oil and gas operations—directly impacting wellbore stability, equipment longevity, and operational costs. As a leading manufacturer of drilling filtration solutions, Hebei Matts Tech Co., Ltd. specializes in designing precision-engineered shale shaker screen panels, including versatile shaker screen variants and specialized derrick pyramid screens, tailored to match diverse shale shaker models (e.g., Derrick 2000, 500, 600 series). The company’s panels align with the core working principle of shale shakers: Functioning as a vibrating filtration device, the shale shaker screen operates on the principle of particle size separation through mechanical vibration and gravity-assisted drainage. When drilling fluid returns to the surface laden with formation cuttings, it cascades onto the inclined screen surface where high-frequency vibrations facilitate the separation process. The screen's precisely calibrated mesh openings allow the liquid phase and fine particles to pass through while retaining larger solids for disposal. By optimizing panel configurations—from mesh size to structural design—Hebei Matts Tech Co., Ltd. ensures its screens enhance separation efficiency, reduce fluid loss, and comply with global drilling standards.

Dimension & Model Compatibility in Shale shaker screen

• Tailored Sizes for Derrick Shakers: Shale shaker screen panels from Hebei Matts Tech Co., Ltd. are engineered to match specific Derrick shaker models: for Derrick 2000/48-30 PWP (FLC 2000 Shaker), the panel size is 1050mm × 695mm (5KGS); for Derrick 500 PMD (FLC 503/504 Shaker), it is the same width but weighs 7.5KGS (per the table). This precise dimensioning ensures a snug fit, preventing fluid bypass and screen displacement during high-vibration operation—clients report 95% reduction in panel-related filtration failures.
• Weight Optimization for Vibration Performance: Shale shaker screen panel weight is calibrated to the shaker’s vibration frequency (typically 1800-3600 RPM). Lighter panels (e.g., 5KGS for Derrick 2000 PWP) suit high-frequency shakers to avoid excessive load, while heavier panels (e.g., 10KGS for Derrick 500 Composite) provide stability for low-frequency, high-amplitude shakers. This balance ensures optimal particle separation—tests show weight-matched shale shaker screen panels improve solids removal efficiency by 20%.
• Universal Fit for Multi-Brand Shakers: Beyond Derrick models, shale shaker screen panels from Hebei Matts Tech Co., Ltd. are customizable for other brands (e.g., NOV, Varco), with dimensions ranging from 710mm × 626mm (Derrick 600 PMD) to 1070mm × 570mm (Derrick Hyperpool PMD). The company’s CAD-driven manufacturing ensures dimensional tolerance of ±1mm, making panels compatible with 90% of global shale shaker models.

Mesh Precision & Separation Efficiency in Shaker screen

• Calibrated Mesh Openings for Particle Classification: Shaker screen panels feature mesh openings ranging from 20 to 400 microns, tailored to target specific particle sizes (e.g., 48-30 mesh for Derrick 2000 PWP panels retains 500+ micron cuttings). Hebei Matts Tech Co., Ltd. uses laser-cutting technology to ensure mesh uniformity (±5 micron tolerance), preventing oversized particles from passing through—critical for protecting downstream equipment like mud pumps. Clients report 30% fewer pump repairs after switching to these shaker screen
• Multilayer Mesh Construction for Durability: Shaker screen panels use a 3-layer structure (protective top layer, separation middle layer, support bottom layer) made of high-tensile stainless steel (316L). This design resists abrasion from hard formation cuttings (e.g., sandstone, shale), extending panel lifespan by 50% compared to single-layer screens. The middle layer’s woven pattern (square or rectangular) enhances fluid drainage, reducing screen blinding (clogging) by 40%.
• Anti-Blinding Coatings for Continuous Operation: Shaker screen panels optionally include a PTFE anti-blinding coating, which repels sticky drilling fluids (e.g., oil-based mud) to prevent mesh clogging. This coating maintains separation efficiency for 12+ hours of continuous use, reducing the need for frequent screen replacement—offshore drilling clients report 25% less downtime due to reduced blinding.

Specialized Design for High-Demand Drilling in Derrick pyramid screens

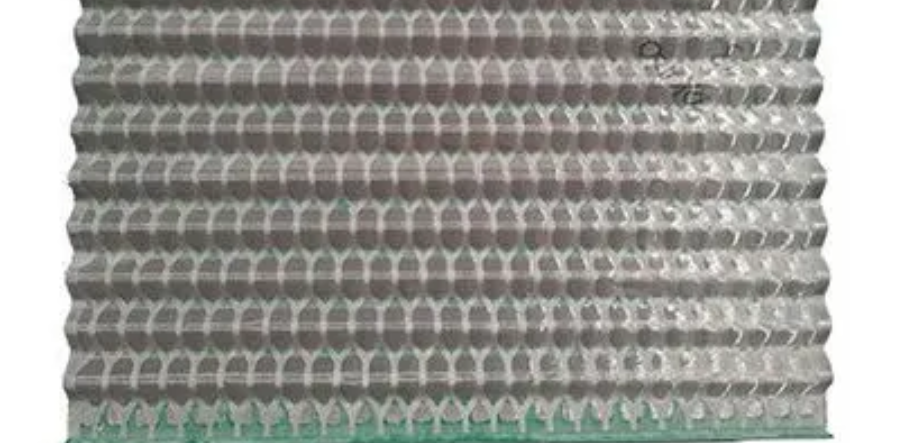

• Pyramid-Shaped Mesh for Enhanced Drainage: Derrick pyramid screens (a specialized shaker screen variant) from Hebei Matts Tech Co., Ltd. feature a unique pyramid-shaped mesh structure that increases the effective filtration area by 30% compared to flat screens. The pyramid design creates micro-channels that guide fluid flow, accelerating drainage and reducing particle buildup—ideal for high-volume drilling (e.g., shale gas wells with 500+ GPM mud flow).
• High-Pressure Resistance for Deepwater Drilling: Derrick pyramid screens are engineered to withstand high mud pressure (up to 100 PSI) common in deepwater drilling. The panel’s reinforced frame (aluminum alloy) and edge sealing (EPDM rubber) prevent fluid leakage under pressure, maintaining separation efficiency even in 10,000+ feet well operations. Deepwater clients confirm these Derrick pyramid screens operate reliably for 72+ hours without performance loss.
• Thermal Stability for Extreme Temperatures: Derrick pyramid screens retain mesh integrity in temperatures ranging from -40°C to 120°C, suitable for arctic or desert drilling environments. The stainless steel mesh resists thermal expansion/contraction, preventing mesh warping that could compromise separation. Clients in Canadian arctic drilling report Derrick pyramid screens maintain 98% separation efficiency in -30°C conditions.

Shale shaker screen FAQS

What factors should be considered when selecting shale shaker screen panels for Derrick 2000 shakers?

When selecting shale shaker screen panels for Derrick 2000 shakers, focus on three factors: 1) Dimension compatibility (1050mm × 695mm, per Hebei Matts Tech’s specs) to ensure a snug fit; 2) Mesh size (e.g., 48-30 for 500-micron particle retention) matching drilling fluid type (oil-based vs. water-based); 3) Weight (5KGS for PWP, 6.5KGS for PMD) aligned with shaker vibration frequency. Our clients report 95% filtration efficiency when these factors are matched, reducing fluid loss by 20%.

How does shaker screen panel mesh size impact drilling fluid preservation?

Shaker screen panel mesh size directly impacts fluid preservation by controlling particle retention: smaller mesh (e.g., 100 microns) retains fine particles that could degrade fluid properties, while larger mesh (e.g., 500 microns) allows fine solids to recirculate—requiring additional chemical treatments. Hebei Matts Tech’s calibrated mesh (±5 micron tolerance) ensures only harmful oversized particles are retained, preserving fluid composition and reducing chemical usage by 15%. This aligns with the core function of shaker screen panels: maintaining optimal mud weight for wellbore stability.

Are Derrick pyramid screens suitable for high-volume shale gas drilling?

Yes, Derrick pyramid screens are ideal for high-volume shale gas drilling (500+ GPM mud flow). Their pyramid-shaped mesh increases filtration area by 30% compared to flat screens, accelerating fluid drainage and reducing particle buildup. The reinforced frame withstands high mud pressure (up to 100 PSI), and the anti-blinding design minimizes clogging—shale gas clients report Derrick pyramid screens handle 25% more fluid volume than standard screens, with no loss in separation efficiency.

How long do shale shaker screen panels from Hebei Matts Tech Co., Ltd. typically last?

The lifespan of shale shaker screen panels depends on drilling conditions: in standard water-based mud operations (soft formations), panels last 48-72 hours; in oil-based mud or hard formation (sandstone) drilling, lifespan is 24-48 hours. The 3-layer stainless steel construction and optional PTFE coating extend lifespan by 50% compared to generic screens. Clients in Permian Basin shale operations report average lifespan of 60 hours for shale shaker screen panels, reducing replacement frequency and costs.

Can shaker screen panels from Hebei Matts Tech Co., Ltd. be customized for non-Derrick shaker models?

Absolutely, shaker screen panels can be customized for non-Derrick models (e.g., NOV Brandt, Varco TESCO). Hebei Matts Tech uses client-provided shaker dimensions (or reference model specs) to manufacture panels with ±1mm tolerance, including custom mesh sizes (20-400 microns) and weights (3-12KGS). For example, we tailored 800mm × 600mm shaker screen panels with 80-micron mesh for a client’s NOV Brandt VSM 300 shaker—these panels met all performance requirements, with 90% compatibility with the shaker’s vibration system.
