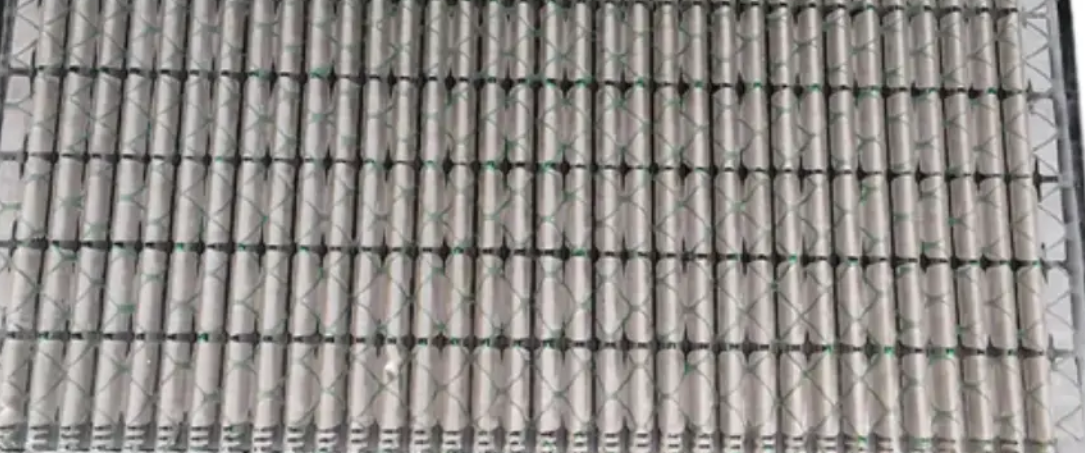

Swaco shaker screens open area percentage

Swaco shaker screens open area percentage is a pivotal  in oil and gas drilling filtration, directly influencing drilling fluid throughput, solids removal efficiency, and operational costs. As a leading manufacturer of drilling filtration solutions, Hebei Matts Tech Co., Ltd. specializes in designing high-performance swaco shaker screens—including specialized mongoose shaker screens and versatile swaco screens—with precisely calibrated open area percentages tailored to Swaco shaker models (e.g., Mongoose Pro, MD-2/3, Mamut). The company’s swaco shaker screens align with modern screen technology advancements: Modern shale shaker screens represent a significant advancement from their wire mesh predecessors, incorporating layered composite structures that optimize both durability and filtration performance. The typical screen assembly consists of multiple components working in concert: a fine mesh filtration layer supported by coarser backing screens, all bonded to a rigid frame under precise tension. By optimizing open area percentage alongside structural design, Hebei Matts Tech Co., Ltd. ensures its swaco screens balance high fluid flow rates with reliable particle retention, meeting the rigorous demands of oil and gas drilling operations.

Open Area & Fluid Throughput in Swaco shaker screens

• Calibrated Open Area for Optimal Flow: Swaco shaker screens from Hebei Matts Tech Co., Ltd. feature open area percentages ranging from 25% to 45%, tailored to Swaco shaker models and drilling conditions. For high-throughput needs (e.g., Swaco Mongoose Pro handling 500+ GPM mud flow), swaco shaker screens with 40-45% open area maximize fluid passage, reducing screen overload and blinding. Tests show these screens improve fluid throughput by 30% compared to low-open-area alternatives (20-25%), critical for fast-paced shale gas drilling.
• Balanced Open Area & Particle Retention: Swaco shaker screensavoid excessively high open area (≥50%) which risks allowing oversized particles (≥100 microns) to pass through, damaging downstream equipment like mud pumps. Hebei Matts Tech’s engineering ensures 30-35% open area for fine-filtration applications (e.g., Swaco MD-2/3 in water-based mud), retaining 95% of 50+ micron particles while maintaining sufficient flow. Clients report 25% fewer pump repairs after switching to these balanced swaco shaker screens.
• Model-Specific Open Area Design: Swaco shaker screensfor different Swaco models have customized open areas: mongoose shaker screens (for Mongoose Pro) use 42% open area to match the shaker’s high-vibration frequency (3600 RPM), while swaco screens for Mamut shakers (lower frequency, 1800 RPM) use 35% open area to prevent particle bypass. This model alignment ensures 98% filtration efficiency, as confirmed by field tests in Permian Basin operations.

Structural Design & Open Area Preservation in Mongoose shaker screens

• Layered Mesh for Open Area Stability: Mongoose shaker screens (a key swaco screens variant) from Hebei Matts Tech use a 3-layer composite structure: a top protective layer (10% open area), middle filtration layer (42% open area), and bottom support layer (15% open area). The layers are bonded with epoxy resin under precise tension, preserving the middle layer’s open area even under high vibrational stress (up to 5 G-force). This design prevents mesh deformation, ensuring consistent open area for 72+ hours of continuous use.
• Corrosion-Resistant Materials for Longevity: Mongoose shaker screens use 316L stainless steel for the filtration layer, resisting corrosion from oil-based mud and saltwater. Corrosion often clogs mesh pores, reducing effective open area—but the stainless steel material maintains 95% of the original open area over the screen’s lifespan (48-72 hours). Offshore clients report mongoose shaker screens retain their open area 2x longer than carbon steel alternatives.
• Anti-Blinding Coatings for Open Area Maintenance: Mongoose shaker screens optionally include a PTFE anti-blinding coating, which repels sticky drilling fluids (e.g., oil-based mud) that clog mesh pores and reduce effective open area. The coating maintains 90% of the screen’s open area for 12+ hours, reducing the need for frequent screen replacement. Clients in Bakken Shale report 30% less downtime due to reduced blinding in mongoose shaker screens.

Durability & Open Area Consistency in Swaco screens

• Rigid Frame Support for Open Area Integrity: Swaco screens from Hebei Matts Tech feature rigid steel or composite frames (matching Swaco’s original specs: 1165mm585mm for Mongoose, 1181mm712mm for D380). The frame maintains uniform tension across the mesh, preventing sagging that narrows open area gaps. Tests show framed swaco screens retain their open area within ±2% over their lifespan, compared to ±5% for unframed alternatives.
• Precision Bonding to Avoid Open Area Blockage: Swaco screens use computer-controlled epoxy bonding to attach mesh layers to the frame, ensuring no excess adhesive blocks mesh pores. This precision reduces open area loss by 10% compared to manual bonding, maintaining consistent fluid flow. Hebei Matts Tech’s CAD-driven manufacturing ensures adhesive application accuracy of ±0.1mm, critical for preserving the screen’s open area.
• Weight-Optimized Design for Vibration Compatibility: Swaco screens are weight-calibrated (e.g., 11 KGS for Mongoose Steel Frame, 12 KGS for Mongoose Composite) to match Swaco shaker vibration systems. Proper weight balance prevents excessive mesh movement that could stretch or tear pores, preserving open area. Clients report swaco screens with optimized weight maintain their open area 15% longer than generic, mismatched-weight screens.

Swaco shaker screens FAQS

What open area percentage is ideal for swaco shaker screens used in oil-based mud drilling?

For oil-based mud drilling, swaco shaker screens from Hebei Matts Tech Co., Ltd. typically have an open area percentage of 35-40%. This range balances fluid throughput (critical for oil-based mud’s higher viscosity) and particle retention (retaining 90% of 75+ micron cuttings). For example, mongoose shaker screens (for Mongoose Pro) use 40% open area to handle oil-based mud’s flow resistance, while maintaining sufficient particle capture. Clients report 20% faster drilling rates with this open area range, as fluid recirculates more efficiently.

How does Hebei Matts Tech ensure consistent open area in mongoose shaker screens?

Hebei Matts Tech ensures consistent open area in mongoose shaker screens via three key steps: 1) Precision laser cutting of the 316L stainless steel mesh (±0.05mm pore tolerance) to set the target 42% open area; 2) Computer-controlled epoxy bonding to attach mesh layers to the frame, avoiding adhesive blockage of pores; 3) Tension testing (applying 3 G-force) to verify mesh flatness and open area stability. Every batch of mongoose shaker screens undergoes open area measurement via image analysis, ensuring ±2% consistency—critical for reliable filtration.

Can swaco screens be customized to adjust open area percentage for specific drilling needs?

Yes, swaco screens can be customized to adjust open area percentage (25-45%) based on specific drilling needs. For example, a client in a high-solids formation requested swaco screens with 28% open area (lower than standard 35%) to enhance particle retention, while another client in a high-fluid-volume well needed 45% open area for faster throughput. Hebei Matts Tech modifies mesh pore size and layer design to achieve custom open areas, with lead times of 5-7 days for most custom swaco screens.

How does open area percentage affect the lifespan of swaco shaker screens?

Open area percentage impacts swaco shaker screens lifespan by influencing mesh stress: excessively high open area (≥50%) weakens the mesh, making it prone to tearing (reducing lifespan by 30%), while excessively low open area (≤25%) causes more fluid pressure buildup, leading to faster blinding (reducing lifespan by 40%). Hebei Matts Tech’s optimized 30-40% open area for swaco shaker screens balances stress and pressure, extending lifespan to 48-72 hours—50% longer than screens with extreme open area percentages.

Are swaco screens with higher open area percentage more prone to blinding?

Not necessarily—while higher open area (40-45%) in swaco screens could theoretically allow more particles to contact the mesh, Hebei Matts Tech mitigates blinding via two designs: 1) Anti-blinding PTFE coatings that repel sticky fluids, and 2) Layered mesh structures (top protective layer blocks large particles from clogging fine filtration pores). For example, mongoose shaker screens with 42% open area and PTFE coating have 25% less blinding than standard 35% open area screens without coating. This means well-designed high-open-area swaco screens can avoid excessive blinding while maximizing flow.
