In oil and gas drilling operations, Brandt Shale Shaker, as a key equipment of the solid control system, plays an important role in separating drilling cuttings from drilling fluid. It achieves preliminary purification of drilling fluid through the synergistic effect of mechanical vibration and screen filtration, laying the foundation for the recycling of drilling fluid. Its operating efficiency directly affects the cost control and environmental performance of drilling operations.
The core advantages of Brandt Shale Shaker are reflected in its efficient separation performance and structural stability

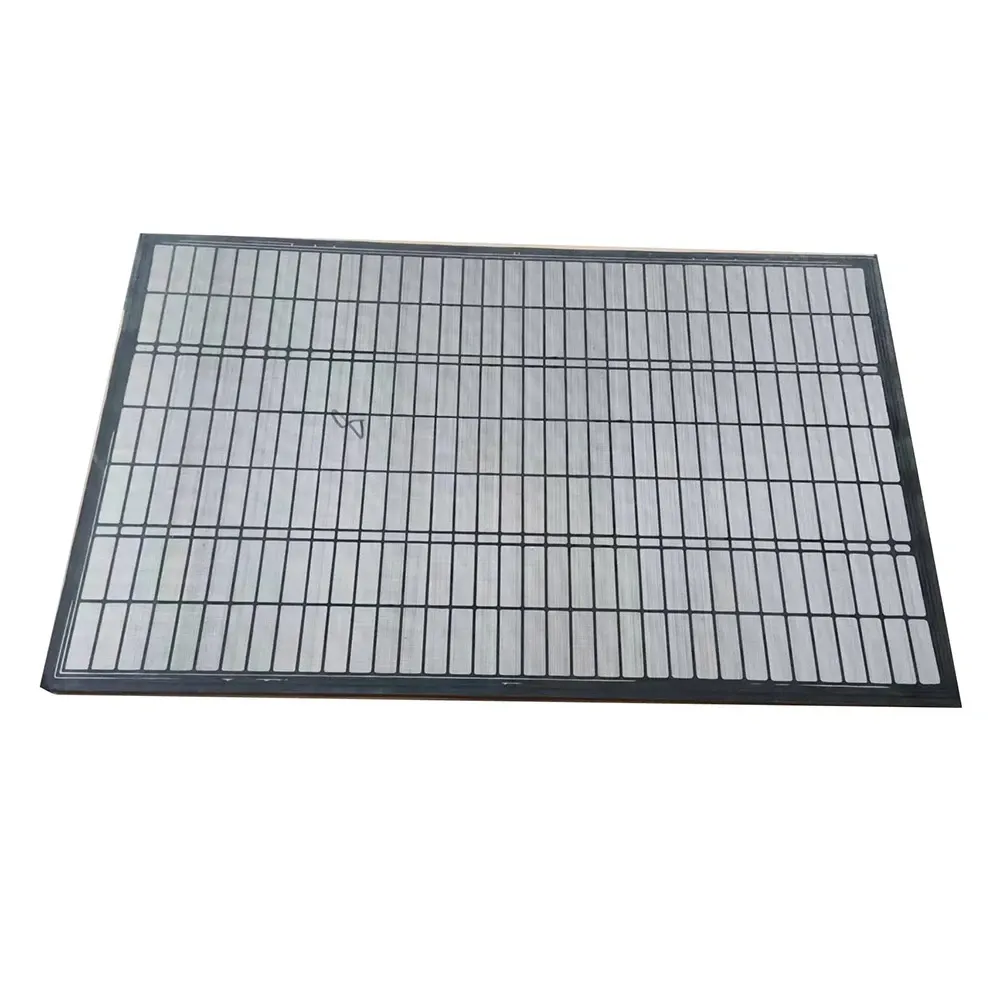

The main body of the king cobra shale shaker is welded with high-strength steel, which can withstand continuous vibration and impact during drilling operations, ensuring long-term operation without deformation. The vibration system adopts an eccentric block exciter, which can adjust the amplitude and frequency to adapt to the characteristics of drilling fluids with different viscosities and drilling cuttings contents - high frequency and low amplitude settings are suitable for handling fine particle drilling cuttings, while low frequency and high amplitude settings are suitable for working conditions with more coarse particles. The screen mesh, as the core filtering component, adopts a multi-layer composite structure, with a wear-resistant metal mesh on the surface and an elastic support mesh on the bottom. It can intercept drilling debris and buffer vibration impact, extending its service life.
The working principle of Brandt Shale Shaker is based on the combination of vibration screening and gravity settling
After the drilling fluid returns from the wellhead, it first enters the feed tank of the king cobra shaker and is evenly distributed on the surface of the sieve. Under the directional vibration generated by the exciter, the drilling fluid flows downwards along the screen surface, and the liquid infiltrates into the lower collection tank through the pores of the screen. The drilling cuttings move towards the end of the screen under the action of vibration thrust and gravity, and finally fall into the debris removal tank to complete separation. This continuous separation process does not require additional power assistance and can achieve efficient processing through mechanical vibration alone. A single device can process tens of cubic meters of drilling fluid per hour, meeting the needs of drilling operations of different scales.
In practical applications, Brandt Shale Shaker has a wide range of scene adaptability
In shallow well operations on land, it can be used as the main purification equipment to quickly process simpler drilling fluid components; During deep and horizontal well operations, a multi-stage solid control system is often formed with sand and mud removers. Brandt shaker screens are used as the first process to remove most of the drilling cuttings and reduce the processing pressure on subsequent equipment; The offshore drilling platform is limited by space and adopts a compact shale shaker. By optimizing the feed structure and screen layout, efficient separation performance is maintained in a limited space; In areas with strict environmental requirements, its enclosed design can reduce the volatilization of drilling fluid and the scattering of drilling cuttings, thereby reducing the impact on the surrounding environment.
With the development of drilling technology, Brandt Shale Shaker's innovation continues to deepen
In terms of energy conservation, variable frequency motors are used to adjust vibration parameters, and power is automatically matched according to drilling fluid flow rate to reduce energy consumption; The intelligent upgrade is reflected in the installation of sensors to monitor the degree of screen blockage and vibration status in real time, automatically adjust parameters or issue warnings through the control system, and reduce manual intervention; In terms of structural optimization, modular design is adopted, and screen replacement does not require tools and can be completed within a few minutes, greatly reducing maintenance time; In addition, the application of the new anti blocking screen reduces the adhesion of viscous drilling fluid, ensuring stable separation efficiency.
In summary, Brandt Shaker has established the first critical line of defense for drilling fluid purification through structural design and functional optimization, with mechanical vibration screening technology as its core. It not only efficiently separates drilling cuttings from drilling fluid, reducing the consumption of drilling fluid, but also demonstrates environmental value by reducing waste emissions. In the future, with the increasing demand for automation and environmental protection, it will continue to make breakthroughs in intelligent control and green design, providing more reliable equipment support for the sustainable development of the drilling industry.
Brandt Shale Shaker FAQs
What is the working principle of Brandt shale shaker?
Brandt shale shaker is an efficient vibrating screening equipment mainly used for separating drilling cuttings and drilling fluids during oil drilling processes. It screens out solid particles (such as rock debris) in the drilling fluid through the combined action of high-frequency vibration and screen, while clean drilling fluid flows back to the circulation system through the screen. The core principle is to use the excitation force generated by the vibration motor to make the screen mesh move in three dimensions, thereby improving screening efficiency and preventing blockage.
What are the main components of a Brandt shale shaker?
The Brandt shale shaker is mainly composed of a sieve box, vibration motor, screen mesh, shock-absorbing spring, and base. The sieve box is the main component that carries drilling cuttings and drilling fluid, usually made of wear-resistant materials. The vibration motor provides the excitation force required for screening, while the sieve selects different mesh sizes based on particle size to achieve efficient separation. Shock absorber springs are used to reduce vibration transmission during equipment operation, ensuring stability and durability.
What are the precautions for choosing a Brandt shale shaker sieve?
The selection of screen directly affects the separation effect and needs to be determined based on the viscosity, solid content, and particle size of the drilling fluid. Usually, fine particles or high viscosity drilling fluids require higher mesh screens, while coarse particles can be screened with lower mesh screens. In addition, the material of the screen mesh is also crucial, with polyurethane or stainless steel screens widely used due to their wear resistance and corrosion resistance. Regularly checking the wear of the screen mesh and replacing it in a timely manner can avoid a decrease in separation efficiency.
What is the importance of Brandt shale shaker in drilling operations?
As the first link in the solid control system of drilling fluid, the efficient operation of Brandt shale shaker directly affects the load of subsequent equipment and the reuse rate of drilling fluid. It can quickly separate drilling cuttings, reduce drilling fluid waste, lower processing costs, while ensuring the stability of drilling fluid performance and avoiding problems such as drill bit wear or wellbore instability caused by high solid content.
-
How to optimize the maintenance of Brandt shale shaker?
Regularly clean the sieve box and screen mesh to prevent drilling debris from accumulating and affecting the vibration effect. Check if the vibration motor is operating normally to ensure even excitation force. Lubricate key components such as bearings to reduce wear. In addition, adjusting the vibration frequency and inclination angle according to the working conditions can further improve the screening efficiency. When the equipment is not in use for a long time, it needs to be thoroughly cleaned and rust proof treated to extend its service life.
