In the solid phase control system of drilling fluid, Swaco Shaker Screens, with its layered composite structure design advantage, has become a core component for improving filtration efficiency and durability. It breaks through the balance problem between strength and accuracy in traditional single-layer screens. Through scientific proportioning and structural optimization of multi-layer materials, it can accurately separate solid particles of different sizes and withstand the harsh testing of drilling environments. Its performance directly affects the circulation quality and operational continuity of drilling fluids.

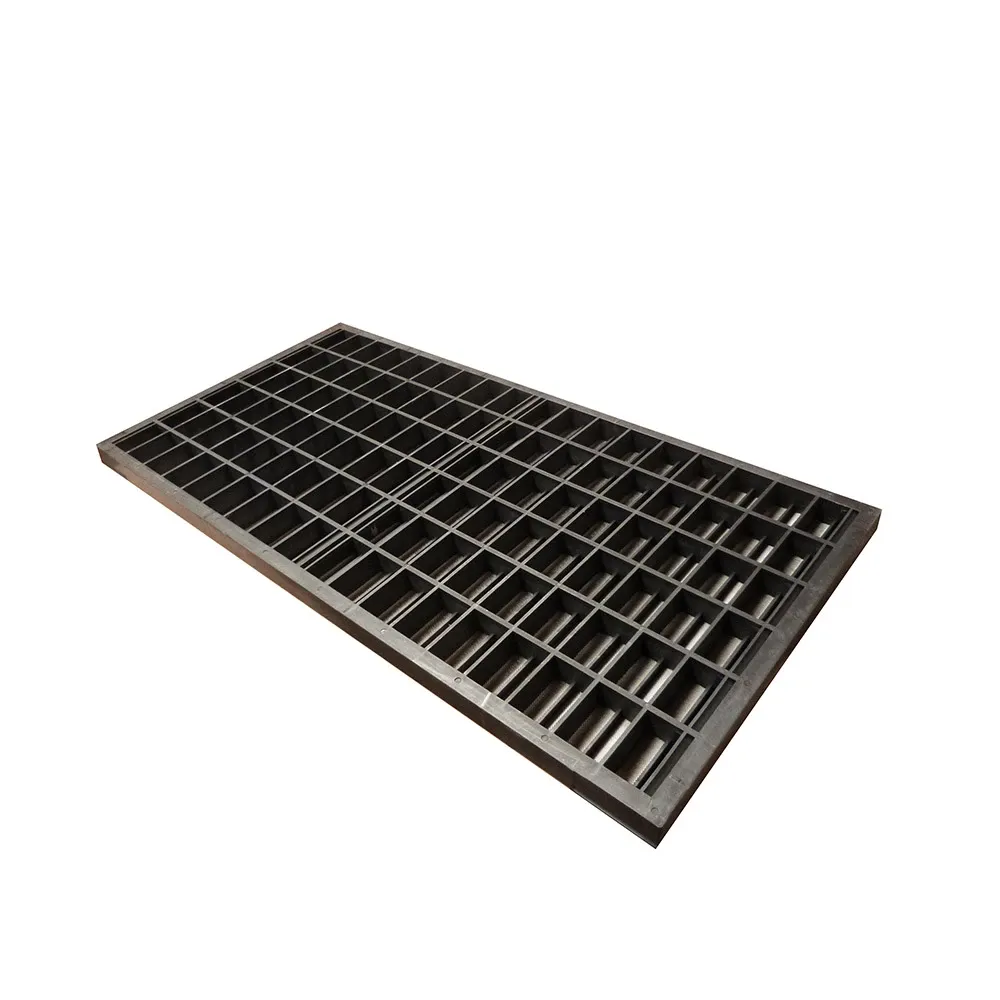

The layered composite structure of Swaco Shaker Screens embodies the wisdom of material synergy
The base layer of mongoose shaker screens is made of high carbon steel mesh, which undergoes special heat treatment to enhance its tensile strength. It serves as the supporting skeleton for the entire screen, ensuring that it does not deform or tear under high-frequency vibration; The middle layer is made of ultra-fine polyester fiber mesh, which is precisely woven to form uniform micron sized pores, achieving efficient interception of fine particles ranging from 5-20 microns while retaining useful components in the drilling fluid; The surface layer is made of wear-resistant polyurethane material, which is tightly combined with the middle layer through molding technology. The anti slip texture on the surface reduces the accumulation of rock debris and improves self-cleaning ability. The three-layer structure is bonded by hot melt adhesive film at high temperature, and the edges are reinforced with stainless steel edging, which ensures the stability of interlayer bonding and enhances the overall impact resistance.
The key criteria for measuring the quality of Swaco Shaker Screens focus on structural stability and filtration efficiency
The firmness of the layered combination of swaco screens needs to ensure that there is no layering or wrinkling under continuous vibration and drilling fluid flushing, and the fracture strength of the base steel mesh needs to meet the long-term high-frequency operation requirements; The consistency of filtering accuracy is reflected in the uniformity of pores throughout the entire mesh, avoiding local leakage or excessive interception; The wear resistance is controlled by the thickness and density of the surface polyurethane, ensuring an extended service life in drilling fluids with high solid content; In addition, the matching degree with the vibrating screen equipment is important. The accuracy of the installation hole position and the flatness of the frame ensure uniform transmission of vibration energy and avoid early damage caused by local stress concentration.
In practical applications, the advantages of the hierarchical structure of Swaco Shaker Screens are highlighted in different scenarios
When drilling in onshore oil fields, facing high viscosity drilling fluids, the polyester fiber mesh in the middle layer can effectively intercept clay particles, while the polyurethane in the surface layer reduces mud adhesion and lowers the frequency of manual cleaning; On offshore drilling platforms, the anti salt spray corrosion treatment and overall sealing design of the base steel mesh adapt to humid and high salt environments, extending the replacement cycle; In shale gas extraction, for drilling fluids with high sand content, a thickened polyurethane layer on the surface can resist the wear of sharp sand particles, while the base steel mesh bears greater vibration loads; Even in small-diameter drilling wells for geological exploration, the lightweight layered structure of swaco screens can be adapted to small vibrating screens to maintain efficient filtration.
With the upgrading of drilling technology, the structural innovation of Swaco Shaker Screens continues to deepen
In terms of environmental protection, some models use recyclable polyester materials and water-based adhesives to reduce pollution during the production process; In terms of functional optimization, by adjusting the pore gradient of the intermediate layer, the classification filtration of coarse and fine particles can be achieved, enhancing the hierarchical feeling of drilling fluid purification; The surface texture design is more refined, such as the wavy concave convex structure to enhance the sliding of rock debris and further reduce the probability of blockage. These innovations allow the advantages of layered composite structures to be more fully utilized.
In summary, Swaco Shaker Screens, with a layered composite structure as its core, achieves a synergistic improvement in filtration accuracy and durability through functional division of labor between the base layer, intermediate layer, and surface layer. It not only solves the performance shortcomings of traditional screens in complex drilling environments, but also provides an efficient solution for drilling fluid purification through structural optimization. In the future, with the advancement of materials science, its layered composite structure will usher in more innovative possibilities, continuously promoting the development of drilling solid-phase control technology.
Swaco Shaker Screens FAQs
What are the specific advantages of the layered composite structure of Swaco Shaker Screens?
The layered composite structure significantly improves the comprehensive performance of the screen mesh by combining the characteristics of different materials. The high-strength base ensures the stability of the overall structure, the middle wear-resistant layer effectively resists the erosion and wear of drilling fluid, and the surface fine filtration layer optimizes the solid-liquid separation efficiency. This design not only extends the service life of the screen mesh, but also adapts to high-frequency vibration environments while maintaining stable filtration accuracy, especially suitable for handling drilling fluids containing high abrasive particles.
Why is it said that the filtration performance of Swaco Shaker Screens is better than traditional single-layer screens?
Traditional single-layer screens are limited by the characteristics of a single material, often making it difficult to balance strength and filtration accuracy. The layered composite structure achieves a step-by-step filtration effect through a precisely designed pore size gradient distribution - the upper layer intercepts larger particles, the middle layer separates medium-sized particles, and the lower layer finely filters small impurities. This synergistic effect reduces blind hole rate, increases processing capacity, and significantly reduces the moisture content of the filter cake, achieving higher standards for drilling fluid recovery quality.
How can layered composite structures enhance the fatigue resistance of Swaco Shaker Screens?
A special interface treatment process is adopted between the substrate and the functional layer to eliminate the problem of interlayer stress concentration. Adding elastic buffering material to the middle layer can absorb the impact energy during the operation of the vibrating screen and prevent the propagation of metal fatigue cracks. After laboratory simulation testing, the composite structure's ability to withstand alternating loads is more than three times higher than that of ordinary sieves, making it particularly suitable for harsh working conditions such as long-term continuous operation.
How adaptable are these Swaco Shaker Screens to drilling fluids of different viscosities?
By adjusting the pore size ratio and surface energy parameters of each functional layer, a wide range of adaptations can be achieved from low viscosity water-based mud to high viscosity oil-based mud. The highly permeable surface prevents sticky substances from sticking to the mesh, while the bottom support structure can maintain stable shape under high pressure environment. On site data shows that when dealing with high viscosity mud containing polymers, its permeability efficiency can still be maintained at over 92%.
What are the key points to pay attention to when maintaining Swaco Shaker Screens?
Regularly using a low-pressure water gun for reverse flushing can effectively remove embedded particles and avoid prolonged immersion of chemical agents. When storing, it should be placed vertically in a dry environment to prevent interlayer materials from absorbing moisture and layering. When local damage occurs, it is recommended to replace the entire structure rather than repair it, as the performance of the composite structure depends on the complete coordination of each layer. Under normal usage conditions, its maintenance cycle can be extended by 40-50% compared to ordinary sieves.
