If you spend time on rigs or HDD spreads, you already know screens can make or break your mud program. I’ve been visiting yards for years, and among the Shale Shakerscreen Manufacturers there’s a quiet shift: composite frames are edging out steel in both uptime and total cost. To be honest, I was skeptical at first—until I watched crews swap in Swaco-compatible composites and stop babying their shakers.

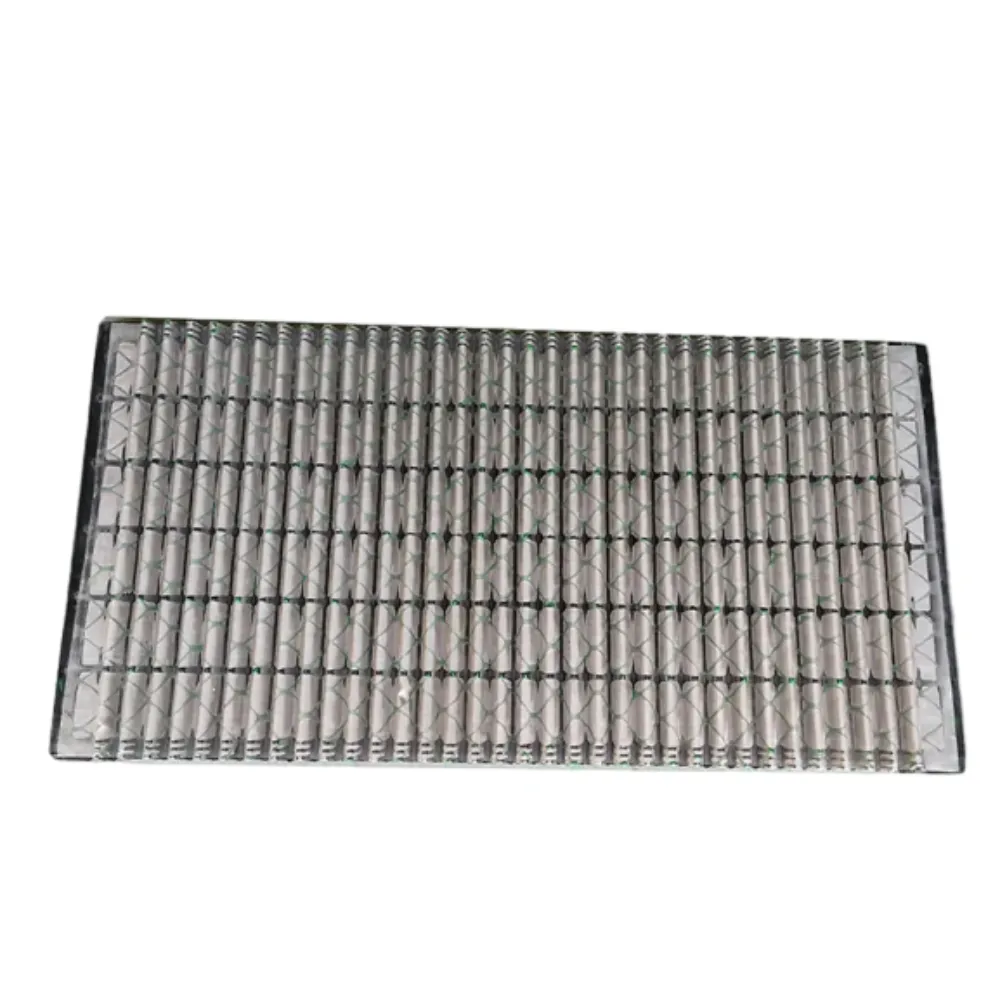

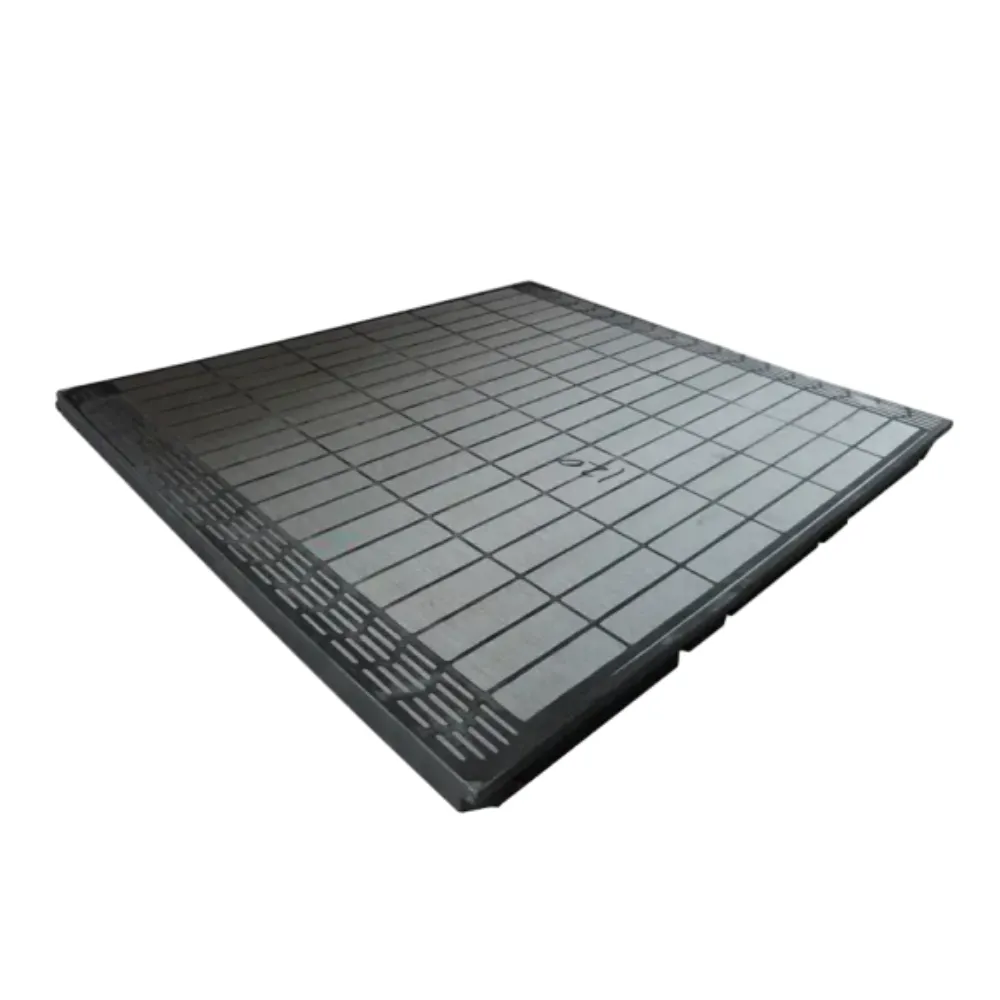

What’s special about these Swaco replacement screens
The high-capacity composite construction used by Shale Shakerscreen Manufacturers such as SolidControlPart feels tougher in the hand—lighter than steel, yes, but not flimsy. The frame resists corrosive drilling fluids, seals ultra-tight against the bed, and that unique lock-in mechanism? It wedges the panel so snugly you get near-zero bypass. Many customers say they see drier discharge and fewer blinds on stickier clays.
| Product | Swaco Replacement Shale Shaker Screens (composite) |
| Mesh/API range | API 20–API 230 (≈ 840–62.5 μm D100; real-world cut may vary) |
| Conductance | Up to ≈ 6.0 kD/mm (API RP 13C method) |
| Usable screen area | Large net area; low dead zones via composite rib geometry |
| Materials | Glass-fiber reinforced composite frame; 304/316 SS multi-layer mesh; EPDM/PTFE seals |
| Compatibility | Swaco MONGOOSE/MEERKAT, MD-2/MD-3, BEM-650 series (check tray size before ordering) |
| Service life | ≈ 600–1200 hours depending on mud weight, solids loading, G-force |
Process, testing, and why it matters
- Materials: corrosion-resistant SS mesh, composite frame cured for dimensional stability.
- Methods: resin infusion molding, precision mesh tensioning, epoxy bond, heat cure, seal compression test.
- Testing: API RP 13C for D100 and conductance; salt-spray (ASTM B117); flexural checks on composite ribs (≈ ISO 178); vibration fatigue at rig-simulated G.
- Result: tighter seal, fewer bypass events, stable cut-point under load.
Where they shine
Oil & gas drilling (water- and oil-based muds), HDD river crossings, geothermal, and even some mining prep lines. In fact, crews told me composites hold up better when switching between bentonite and polymer sweeps—less warping, less fuss.
| Vendor | API 13C Compliance | Frame | Lead Time | Customization |
|---|---|---|---|---|
| SolidControlPart | Yes (lot-wise test sheets) | Composite (reinforced) | 4–10 days typical | Mesh, sealing, branding |
| Trading House A | Claims only | Steel/composite mix | 2–5 weeks | Limited |
| Regional Fabricator | Varies | Steel | Stock dependent | Cut-to-fit only |
Customization, origin, and on-rig feedback
Customization options include API cut point, logo print, color-coded corner blocks, and special seals for oil-base mud. Origin: ROOM 1907, ZIJIN BUILDING，HUAIAN STR. SHIJIAZHUANG. A superintendent in the Mid-Con told me their drier solids reduced centrifuge hours by around 12%. Another rig in Oman ran the same deck for an entire 17½ in. interval—surprisingly, no mid-run swaps.
Quick case notes (data I trust)
- HDD river crossing, 1.4 sg mud: composite screens delivered ≈ 18% higher throughput vs steel, API 100 cut, zero reported bypass events.
- Land rig with high-LGS OBM: conductance held within API label across 24-hour endurance test; only edge wear observed.
Shale Shakerscreen Manufacturers who publish API 13C test sheets and salt-spray data are, in my experience, the safer bet. It’s not flashy—just evidence.
References
- API RP 13C: Recommended Practice on Drilling Fluid Processing Measurements (screen labeling, conductance, D100).
- ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus.
- ISO 178: Plastics—Determination of flexural properties.
